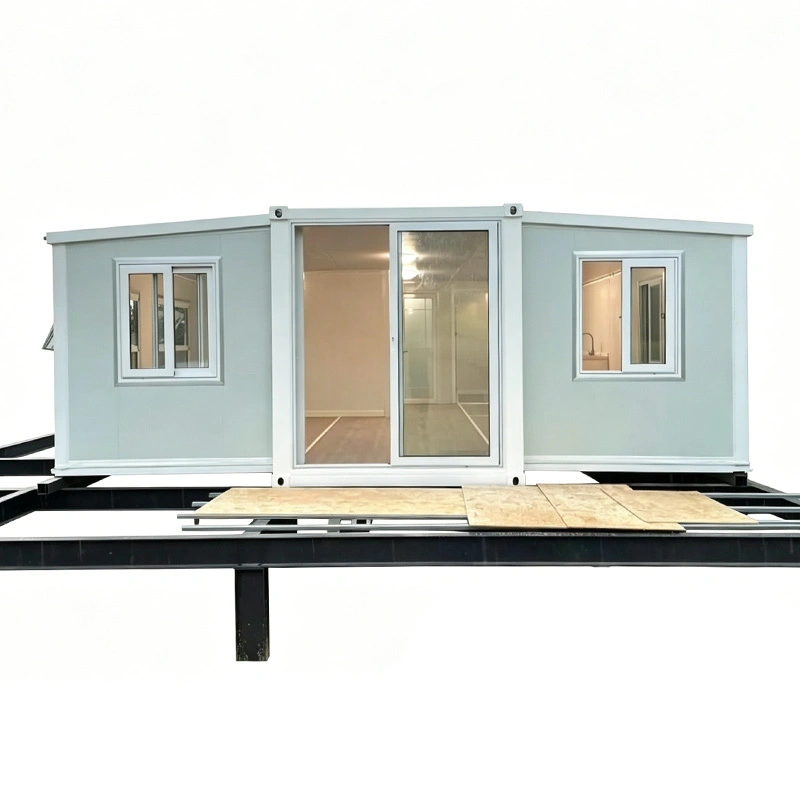

20FT Double-Wing Expandable Container Suitable for Farm Residences 1

20FT Double-Wing Expandable Container Suitable for Farm Residences 2

20FT Double-Wing Expandable Container Suitable for Farm Residences 3

20FT Double-Wing Expandable Container Suitable for Farm Residences 4

20FT Double-Wing Expandable Container Suitable for Farm Residences 5

20FT Double-Wing Expandable Container Suitable for Farm Residences 6

20FT Double-Wing Expandable Container Suitable for Farm Residences

The 20FT Double-Wing Expandable Container is a mobile residence designed for farmers. Once expanded, it covers an area of 37 to 40 square meters, accommodating a three-bedroom one-living room or two-bedroom one-living room layout. It can be towed by a tractor to any corner of the farm—placed in the east field during planting season to save travel time, moved to the edge of the pasture during grazing for easier livestock supervision, or brought back to the main house as a guest room during the off-season. The steel structure is durable for over 20 years. The house follows the person, not the person following the house.

Parameters:

White Double-Wing Expandable Container

Model:

20FT, Two Bedrooms, One Living Room, One Bathroom, One Kitchen

Expanded Size:

L5900×W6260×H2480mm

Internal Size:

L5660×W6100×H2220mm

Folded Size:

L5900×W2200×H2480mm

Total Net Weigh:

3 tons

Color:

Customizable

Layout:

Customizable

Area:

37 square meters

Inquiry

Write a Review

Core features

● Mobile: Can be towed by a tractor or pickup truck

● Quick Deployment: Expands in 1 hour, usable the same day

● Cost-effective Shipping: Shipped folded, 2 units per 40-foot container

Download Specifications

0 (6)

Configuration Table

Product Type	Standardized products, capable of customized design
House specifications	Customizable
Structure	Fully Galvanized Cold-Formed Section
Building Maintenance	The standard sandwich core material is 12kg/m³ EPS, 75mm sandwich panel, with 0.35 color-coated steel on both sides (core materials available include rock wool, EPS, and polyurethane)
Ceiling	50mm EPS sandwich panel, 1.0mm thick steel plate
Ground	Fireproof magnesium glass floor 18mm thick, PVC floor covering, 2.0mm / stone-plastic floor 4.0
Door	Standard steel doors (customizable KFC entrance doors, broken bridge aluminum entrance doors, titanium-magnesium alloy sliding doors)
Window	Standard plastic-steel sliding windows (customizable high-end broken bridge aluminum windows and aluminum alloy sliding windows) 9309308 pieces
Kitchen	Standard L-shaped cabinet
Bathroom	Includes partition, shower, washbasin and toilet, mirror, cabinet, sliding shower door, floor drain, and water supply and drainage pipes
Foundation	Concrete isolated foundation

Get Full Version

Configuration Table

Basic Information	Product model	20 feet
	Expand the dimensions	L5900W6480H2480	Number of occupants	2 to 4 people
	Internal dimensions	L5460W6320H2235	Electric power consumption	12KW
	Folding size	L5900W2200H2480	Total net weight	Approximately 3.5 tons
	Floor area	38.2㎡
Top of the box	External central ceiling	1.0 millimeter thick steel plate
	Internal roof panel	50mm EPS core board
	Internal ceiling panel	50mm EPS core board
Wall panel	Exterior wall panel	The standard core material is 12kg/m³ EPS, a 75mm sandwich core board, and a double-sided 0.35 mm colored roll (the core materials available include rock wool, EPS, and polyurethane).
	Interior partition panel	50mm EPS core board
Floor	Central floor panel	Fireproof glass-magnesium floor, 18mm thick
	The floor on both sides	Fireproof glass-magnesium floor, 18mm thick
	Floor	PVC floor covering 2.0mm / Stone plastic floor 4.0
Door and window system	Entry door	Standard configuration: Steel doors (Customizable: KFC entrance doors, insulated aluminum entrance doors, titanium-magnesium alloy sliding doors)
	Bedroom door	Steel door / High-end aluminum-wood core door
	Window	Standard plastic-steel sliding windows (customizable to high-end aluminum-veneer windows and aluminum sliding windows) 9309308 units
Electrical system	Breaker system	One leakage protection device, four circuit breakers
	Light	LED round ceiling lamp / recessed lamp
	Socket	On-demand
	Light switch	Double-press switch, single-key switch
	Cabling	Incoming line 6², water heater line 6², kitchen socket 4², air conditioner socket 4², ordinary socket 2.5², lighting 1.5²
Cabinet		Standard L-shaped kitchen cabinets
Bathroom	Bathroom materials	Including partitions, shower head, wash basin, toilet, mirror, cabinet, sliding shower door, floor drain, water supply and drainage pipes

Get Full Version

European Mining Area

Colorful sections: 4 colors distinguish different functional areas

Three-story design: Fully utilize vertical space to improve land use efficiency

Fully functional: Built-in air conditioning, toilets, meeting rooms, office area, dormitory

Modular and flexible: 132 containers can be freely combined according to project needs

Highly adaptable: Suitable for remote mining areas or temporary construction sites

High efficiency: Quick transportation, assembly, and disassembly, saving time and costs

20FT Double-Wing Expandable Container Suitable for Farm Residences 10

COMPANY STRENGTH

Region: Europe.
Room Type: Packaged container housing + glass curtain wall.
Industry: Mineral extraction.

20FT Double-Wing Expandable Container Suitable for Farm Residences 11

COMPANY STRENGTH

Area: 3500㎡.
Application: Mining area office and living camp
Time: 2019.

Urban Commercial Complex / Cultural and Tourism Trendy Street / Creative Market

20FT Double-Wing Expandable Container Suitable for Farm Residences 12

COMPANY STRENGTH

Region: Asia.
Unit Type: Packaged container units + mixed single-story and double-story structure.
Industry: Commercial real estate development, cultural and tourism towns, nighttime economy, urban renewal.

20FT Double-Wing Expandable Container Suitable for Farm Residences 13

COMPANY STRENGTH

Area: 10,440㎡.
Applications: Specialty food street, family amusement park, outdoor music bar, cultural and creative handmade market, convenient car wash service center.
Year: 2021.

20FT Double-Wing Expandable Container Suitable for Farm Residences 14

Features

● Rapid land utilization to capture the market: For idle land or short-term plots, packaged container buildings do not require lengthy construction; a flat site can become a commercial street in about 2 months, quickly recovering investment.

● Flexible business formats with high adaptability: Single-story units are suitable for fast food and retail; double-story units are suitable for restaurants and bars; combined units can be used for a children’s playground. As commercial popularity increases, containers can be added, removed, relocated, or recombined at any time.

● Low cost with high visual appeal: Compared to traditional reinforced concrete, container construction costs are lower, and graffiti art gives the project a unique visual impact, achieving a "trendy check-in spot" effect at low cost.

● Fully pre-installed utilities: For special business types such as car washes and restaurants, containers are pre-equipped in the factory with water supply and drainage, oil-proofing, and high-power circuits, ready for on-site connection without large-scale modification.

● Transferable assets: If the land lease expires, the 580 containers can be dismantled, transported to a new location, and rebuilt, preserving the investment and maintaining asset value.

Research and Study Education Practice Base / Outdoor Teaching and Expansion Camp Area

20FT Double-Wing Expandable Container Suitable for Farm Residences 16

COMPANY STRENGTH

Region: Asia.
Room Type: Flat Packing Container Houses + Glass Curtain Wall.
Industry: Quality Education, Youth Research and Study, Corporate Team Building, Labor Education Practice.

20FT Double-Wing Expandable Container Suitable for Farm Residences 17

COMPANY STRENGTH

Area: 9,000㎡.
Applications: Collective Dormitories, Multi-function Conference Rooms, Themed Training Rooms, Standardized Canteen (Toilet/Shower), Interactive Teaching Base.
Year: 2020.

Features

● Super Speed: Flat Packing containers are produced on a factory assembly line and constructed onsite simultaneously, shortening the construction period by 70% compared with traditional buildings, ensuring the camp can be put into operation quickly.

● Flexibility and Versatility: The double-layer structure made of 72 containers can be freely arranged according to the terrain (e.g., square-shaped, linear, L-shaped), and modules can be directly added for expansion when enrollment scales increase in the future.

● Green and Environmentally Friendly: The main steel structure is 100% recyclable, and on-site wet work is minimal, preserving the surrounding ecological environment of the research and study base.

● Safe and Comfortable: Excellent seismic performance of the structure; walls use fireproof and soundproof materials, combined with a complete air conditioning and ventilation system, providing a comfortable research and study environment for teachers and students.
