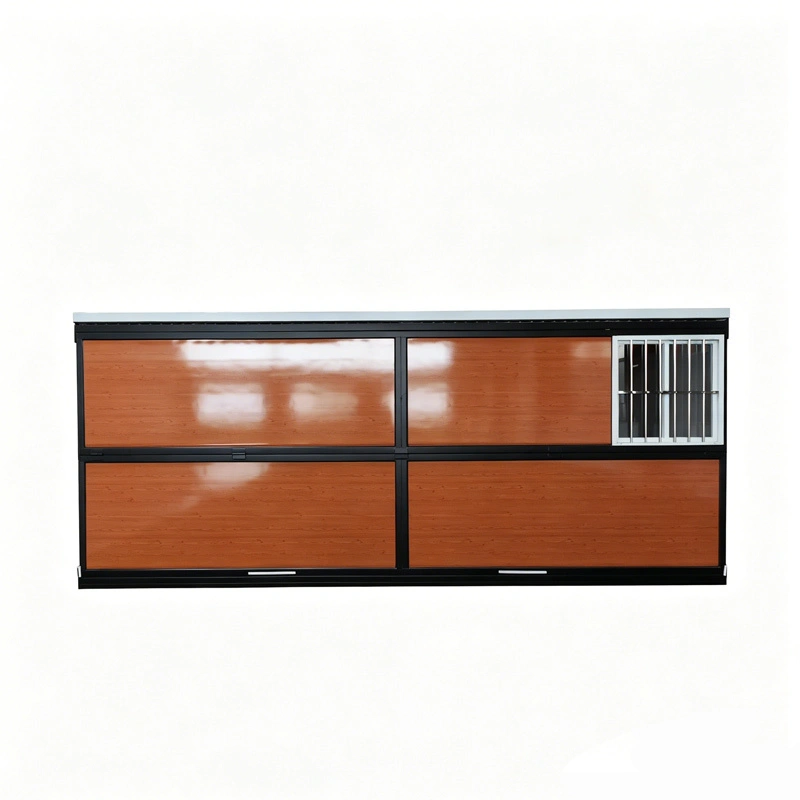

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House 1

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House 2

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House 3

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House 4

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House 5

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House 6

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House 7

Cultural Tourism Campsite and Commercial Display Dedicated X Folding Container House

The unique X folding design is the core advantage that distinguishes this container house from traditional products. It can be folded quickly and easily without complex tools or professional construction teams, featuring a compact structure when folded—greatly reducing storage and transportation costs, and allowing for convenient transportation to remote scenic spots or temporary commercial venues by truck or forklift. When unfolded, it rapidly forms a stable, spacious, and enclosed functional space, realizing fast deployment and putting it into use in a short time, which is particularly suitable for the dynamic needs of cultural tourism campsites and temporary commercial displays.

Model:

X Folding Cultural Tourism Series

Expanded Dimensions:

L5800 × W2460 × H2430mm

Folded Height:

320mm

Appearance:

Wood-grain decorative panels (customizable)

Inquiry

Write a Review

Core features

● Wood-grain appearance for greater commercial appeal

The visual effect is close to traditional wooden structures, enhancing spatial quality and suitable for commercial-facing scenarios.

● Quick deployment, shortening project preparation cycles

Foldable transport, ready to use upon arrival, particularly suitable for seasonal operations.

● Flexible combination to create featured streetscapes

Supports multi-unit splicing, forming campsite units, commercial row spaces, or exhibition areas.

● Customizable internal functions

Can be upgraded to:

Premium boutique lodging rooms; Coffee shop / milk tea bar;Scenic area ticket office;

Exhibition and experience hall

Download Specifications

Exploded view of a modular house

Configuration Table

Product Type	Standardized products, capable of customized design
House specifications	Length: Designed according to the modular size of the panels, with recommended column spacing. House specifications Span: Designed according to the modular size of the panels, with recommended economical spans, not exceeding 12m. Eave height: Designed according to the needs of actual functional rooms, not exceeding 5m.
Design parameters	Roof live load: 0.5 KN/m² Wind load: 0.45 KN/m²
Structure	Cold-galvanized cold-formed profiles
Building Maintenance	Roof insulation: glass wool roll 12kg/m³, other thicknesses optional Wall insulation: 50mm thick rock wool color steel sandwich panel, other thicknesses optional
Ceiling	831 Color Steel Ceiling Tile
Ground	Cement board, other materials optional
Door	Steel doors, others can be designed according to requirements
Window	Plastic steel windows/aluminum alloy windows, others can be designed according to needs
Foundation	Concrete isolated foundation

Get Full Version

Configuration Table

	Zhongyi Zhiji (henan) Intelligent Technology Co., Ltd ROOM 1506 , Shangqiu Architectural Design Building,Southwest corner of intersection of Zhongzhou Road And Meiyuan Road ，Shangqiu CityHenan Province,CHINA TEL: +8619034011705 EMAIL: joy@zyzjcontainerhouse.com
Container Technical Specification Sheet
	Specification	Material Name	Model	Thickness（mm)	unit	Quantity
Basic Features	External Dimensions		580024702450
	Internal Dimensions		566023502350
	Folded State		58002470320
	Total Weight（kg)		900.00
Frame Structure	Roof Structure	Q235 Galvanized Square Pipe	30502320m	1.50	pieces	5
		Special-shaped Parts		1.50	pieces	2
		Galvanized Square Pipe	60605800	1.50	pieces	2
		Galvanized Flat Iron		2.00	pieces	7
		EPS Integrated Board	#50	0.40	pieces	6
	5.8m Side Walls	L-shaped steel plates	1150.00	1.50	pieces	4
		L-shaped steel plates	1650	1.50	pieces	4
		Galvanized P-type pipes	30555800	1.50	pieces	8
		Galvanized P-type pipes	1080mm	1.50	pieces	8
		Galvanized hinge			pieces	34
		Wall panels :orange peel pattern	1080mm	0.27	pieces	8
		Special-shaped parts	1080mm	0.40	pieces	8
		Galvanized buckle grooves	1080mm	1.20	pieces	8
		D-type rubber strips	5800		pieces	24
	2.47m Side Walls	Galvanized P-type pipes	2450	1.50	pieces	4
		Galvanized P-type pipes	2350	1.50	pieces	4
		Galvanized buckle grooves	2450	1.30	pieces	1
		Galvanized buckle grooves	860	1.30	pieces	1
		Orange Peel Pattern Wall Panel	950	0.27	meters	9.66
		Galvanized angles	50#	1.30	meters	20.41
		window	925*930		pieces	2
		door	970*1970		pieces	1
		Rubber strips		sealing	meters	21.32
	Bottom Structure	Custom galvanized square pipes	601205.8m	1.50	pieces	2
		Custom galvanized square pipes	60602320	1.50	pieces	2
		High-strength hinges			units	4
		Q235B galvanized square pipes	40602320	1.50	pieces	9
		floor	1133*2338	15.00	pieces	5
Roof	Overall frame coating	Electrostatic spraying/matte white
wall panel	5.8m Side Walls	50mm composite board (0.27mm + flame-retardant EPS (12kg) + 0.27mm)
wall panel	2.47m Side Walls	50mm composite board (0.27mm + flame-retardant EPS (12kg) + 0.27mm)
floor	Magnesium oxide board (15mm)
Electrical System	Incoming line: 2.5mm² national standard soft copper wire 20A circuit breaker × 1 unit Three-hole air conditioning socket × 1 unit Socket incoming line: 2.5mm² Five-hole single switch socket × 1 unit Five-hole socket × 1 unit LED light × 1 unit


Anti-theft Door	High-quality anti-theft door (warm white)size:970mm*1970mm
Window	925×930 double glass sliding thickened plastic steel window (warm white)
Roof Load Capacity	1.0KN/m²
Walkway Load Capacity	4.2KN/m²
Wall Pressure Resistance	0.5KN/m²
Fire Rating	Grade A
Seismic Resistance	Grade 8
Wind Resistance	Grade 10

Get Full Version

Application

Earthquake Relief (X-shaped Fold)
