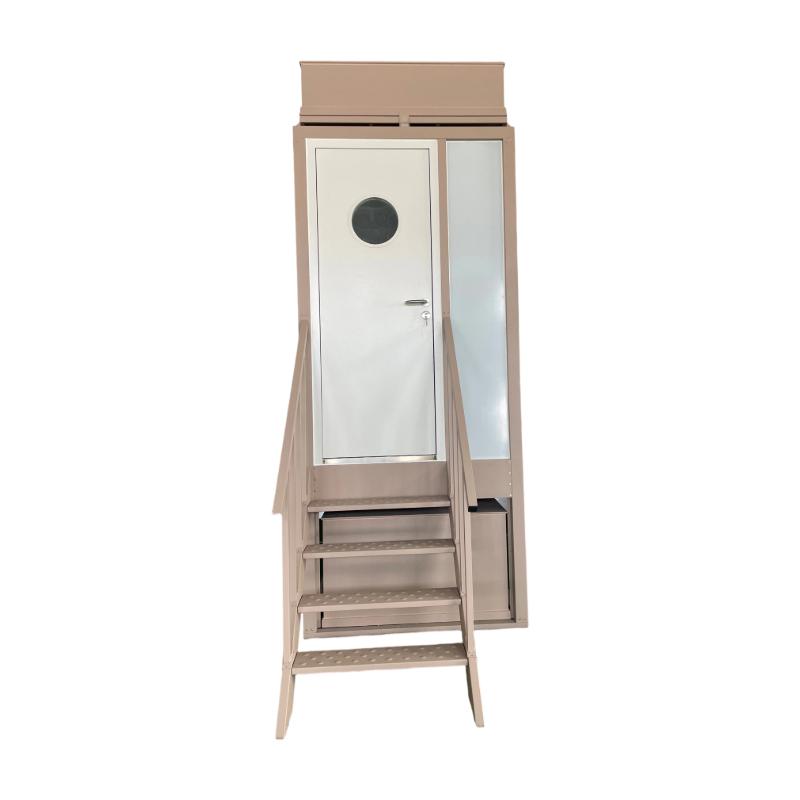

Portable Toilet Cabin With Water Tank and Septic Tank and Staircase

Application: Specifically designed for water-scarce and pipeless areas in the Middle East, Africa, and South Asia, in line with local customs in Saudi Arabia.

Inquiry

Write a Review

Key Advantages

● Large water tank, Saudi standard flushing, integrated septic tank

● Outdoor staircase design: Standardized three-level non-slip stairs + stainless steel handrails. Elevating the ground to prevent desert ants, scorpions, and sand from flowing in.

● High-temperature resistance and sand resistance: Inlet with sand-proof net, UV stabilizer on the shell, does not deform even under intense sunlight.

Download Specifications

Configuration Table

Staircase unit toilet (with sink + septic tank)
Frame size: 1350x1350x3480
						Quantity	Unit price
							10700
Serial Number	Product Name	Specification	Quantity	Weight/kg	Qty per case	Total weight	Note
1	Water tank	1270x1270x330	1	57	34	1938
2	Sewage tank	1270x1150x650	1	77.3	34	2628.2
3	Stand column	2995x4	4	34.4	34	1169.6	Single root weight: 8.6
4	Skirting line	385x80	1	3.65	34	124.1	8 small pieces / 8 swallowtail screws
5	Skirting line	1190x80	3		34	0
6	Energy-saving and environmentally-friendly water tank	/	1	3	34	102	Two swallowtail screws
7	Water tank base	1270x1270	1	10.5	34	357	8 pieces of M6x8 stainless steel screws
8	Toilet baseplate	1350x1350	1	15.65	34	532.1
9	Guard strip	1975x75	1	3	34	102
10	Stair railing	1920x660	1	5.3	34	180.2	20 pieces of wing-nut screws
11	Staircase side panel	1475x165	2	11	34	374
12	Stair steps	815x180	4	14	34	476	24 pieces of M8 stainless steel screws
13	Toilet wall panel	1200x235	4	17	34	578
14	Toilet ceiling	1355x1355	1	21	34	714
15	Stainless steel floor in the bathroom	1200x1200	1	3.4	34	115.6
16	Ladder stand	2880x350	1	9.5	34	323	8 M8 stainless steel screws, 30 stainless steel v-shaped nails, 4 ladder small items
17	Toilet wall panel	1997x1200	2	19.1	34	649.4
18	Window installed on the wall panel of the bathroom	1997x1200	1	8.6	34	292.4
19	Toilet wall panel	1997x400	1	3.15	34	107.1
20	Overhanging window	400x600	1	7.7	34	261.8	4 pieces of wing-nuts, length 38
21	PVC conduit	1900x24x4	1	0.3	34	10.2	Double switch 1 unit, Switch box 1 unit, 8 nails
22	Exhaust fan	200x95x205	1	0.65	34	22.1
23	Steel door	1970x800	1	15.2	34	516.8	50 swallowtail nails, 6 pieces
24	PVC electrical tape		10	1.7	34	57.8
25	PVCD	110x50 three-way connector	1
26	PVC-U	110x75 direct size change	1
27	PVC cleaning port		2
28	PVC elbow joint	110	2
29	PVC elbow joint	50	1
30	PVC110 pipe	75	1
31	PVC50 pipe	120	1
32	PVC50 pipe	580	1
33	PVC110 pipe	145	1
34	PVC75 pipe	65	1
35	Adhesive tape		20
36	Triangular prism basin		1	11.65	34	396.1
37	Inlet pipe		2	0.2	34	6.8
38	Wave tube		1	0.1	34	3.4
39	304 stainless steel handle lock		1	0.65	34	22.1
40	Toilet sign board		1	0.05	34	1.7
41	Sink faucet		1	0.25	34	8.5
42	Wire	5m	1	0.1	34	3.4
43	Three-function ceiling lamp		1	0.2	34	6.8	2 nails
44	Flush nozzle		1	0.25	34	8.5
45	Copper valve		2	0.2	34	6.8
46	PPR water supply pipe		1	0.5	34	17
47	Rivet	4x16	532	1.35	34	45.9
48	Stainless steel screws	M8x16	40	0.35	34	11.9
49	Stainless steel screws	M6x16	75	0.4	34	13.6
50	Tail fin nail	16	22	0.05	34	1.7
51	Tail fin nail	50	8	0.05	34	1.7
52	Tail fin nail	38	6	0.05	34	1.7
53	Tail fin nail	16 wood	35	0.05	34	1.7
Total			358.55			12190.7

Get Full Version

Common Questions FAQ

How to clean the water tank?

Empty it every 3-6 months, soak it in diluted hypochlorous acid solution for 2 hours, then rinse thoroughly. We provide dedicated maintenance manholes.

Can it be placed directly on sandy ground?

Yes. It is designed with an integrated steel base at the bottom, providing a large area for stability. Or, a layer of crushed stone pad (10cm) can be laid first for greater stability.
